Cantilever Bracket AK HCP

Group:

1854

Product as PDF file

Application

Ready-to-use bracket for mounting pipes to walls or other building structures.

Installation

When used in combination with sliding elements, a tied rod is absolutely essential for absorbing the forces running along the centre line of the pipe.
For cantilever lengths > 500 mm we recommend the integration of a prop-up.

Technical Data




Anchor load classes A = 1.5 kN B = 2.5 kN C = 3.5 kN D = 6.0 kN Restrictions σ_zul ≤ 160 N/mm² f_perm ≤ L/150 for L > 450 mm f_perm ≤ 3 mm for L ≤ 450 mm

Material:

Steel, HCP

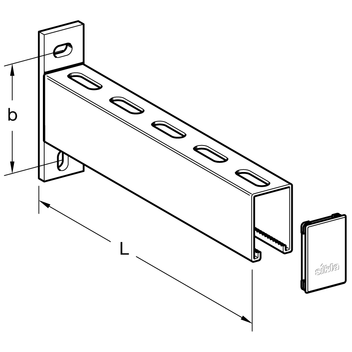

Type	L [mm]	Wall plate [mm]	b [mm]	Dimensions of elongated hole [mm]	W [kg]	Quantity [pack]	Part number

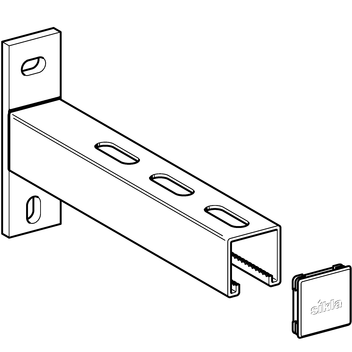

41/41 - 320	320	134 x 40 x 8	100	13 x 18	0.95	10	181667
41/41 - 570	570	134 x 40 x 8	100	13 x 18	1.50	10	181676
41/41 - 820	820	134 x 40 x 8	100	13 x 18	2.00	1	161479
41/62 - 320	320	134 x 40 x 8	100	13 x 18	1.40	10	180119
41/62 - 570	570	134 x 40 x 8	100	13 x 18	2.25	10	180128
41/62 - 820	820	134 x 40 x 8	100	13 x 18	3.05	1	180137

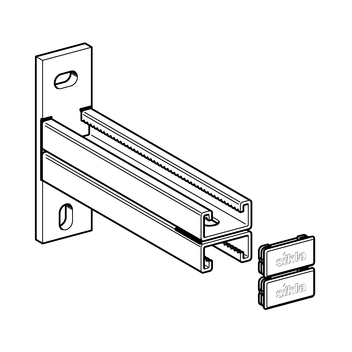

41/21 D - 320	320	134 x 40 x 8	100	13 x 18	1.25	10	180146
41/21 D - 570	570	134 x 40 x 8	100	13 x 18	2.25	10	180155

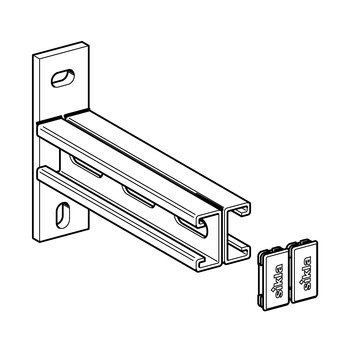

41/21 Dq - 320	320	134 x 40 x 8	100	13 x 18	1.20	10	180164
41/21 Dq - 570	570	134 x 40 x 8	100	13 x 18	1.95	10	190424
