HDG & HCP Standard Range

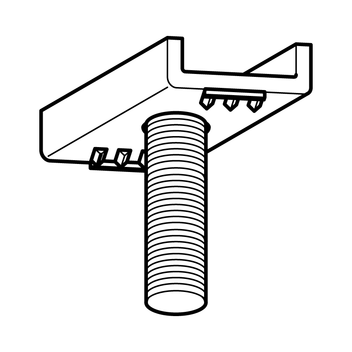

T-Head Bolt TBO HZ 41 HCP
Application

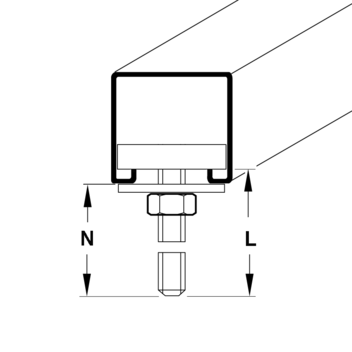

To be used with Channels MS 41 HCP.
Technical Data
| Type | Tightening torque Mdmax [Nm] | Permissible bending moment 1) [Nm] |
|---|---|---|
| HZ 41 M10 | 18.0 | 10.0 |
| HZ 41 M12 | 32.0 | 17.5 |
| 1) | The actual bending moment shouldn't exceed the bending moment of the channel acting laterally. |
| Material thickness channel [mm] | FZ ≤ [kN] | FQ ≤ [kN] |
|---|---|---|
| 1.5 | 3.0 | 2.9 |
| 2.0 | 5.8 | 3.4 |
| 2.5 | 5.8 | 4.1 |
| 3.0 | 5.8 | 4.4 |
Notice: The permissible bearing capacity of the channels is to be respected.
| Material: | |
| T-Head: | Class 5.6, HCP |
| Threaded rod: | Class 4.8, HCP |
