Pressix CC 41 - Channel System

Channel Bracket SH

Group:

1112

Product as PDF file

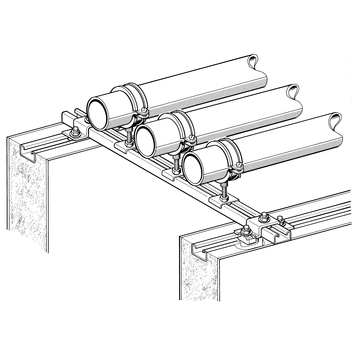

Application

For fixing Sikla Channels:

directly to the building structure or
directly onto other channels for frame assembly.

When mounting the Channel Holder onto freestanding or embedded channels, we recommend the use of Speed Nut CC bolts.

Technical Data

Material:

Steel, electro-galvanised

Type	b x s [mm]	L [mm]	ø d₁ [mm]	ø d₂ [mm]	W [kg]	Quantity [pack]	Part number
41/21	40 x 4	80	11	11	0.15	50	177338
41/31	40 x 4	80	11	11	0.18	50	113645
41/41 u, 41/21 D	40 x 4	80	11	11	0.20	50	177365
41/45	40 x 4	80	11	11	0.21	50	126791
41/52	40 x 4	80	11	11	0.23	50	177347
41/62	40 x 4	80	11	11	0.27	25	177356
41-75/65	50 x 5	120	13	13	0.43	25	177644
41-75/75	50 x 5	120	13	13	0.48	25	177662

41/41 D	40 x4	80	11	11	0.30	10	177374
41/45 D	40 x4	84	13	13	0.33	10	125532
41/52 D	40 x4	84	13	13	0.38	10	177383
41/62 D	40 x4	84	13	13	0.42	10	163000
41-75/65 D	50 x 5	120	13	13	0.69	10	177671
41-75/75 D	50 x 5	120	13	13	0.76	10	177680
