Fastening to Concrete and Steel
Assembly Set MS 5P
Application

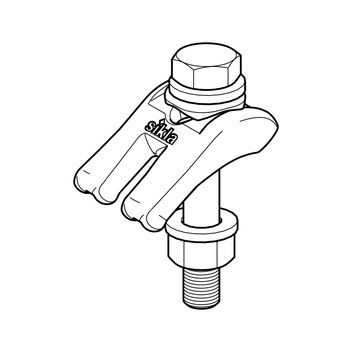

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.
Scope of delivery
| Type | Beam Clip [Quantity] | Support plate [Quantity] | HR trimming * [Quantity] |
|---|---|---|---|
| M12 S | 4 x M12 | 4 x M12 | 4 x M12 x 80 |
| M16 S | 4 x M16 | 4 x M16 | 4 x M16 x 100 |
| M12 S2 | 2 x M12 | 2 x M12 | 2 x M12 x 80 |

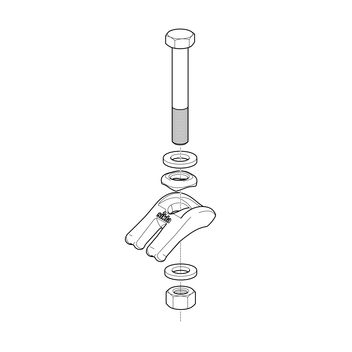

* HR trimming according EN 14399-3 consisting of: Hexagon bolt M12 or M16, 2 washers, 1 hexagon nut
Installation

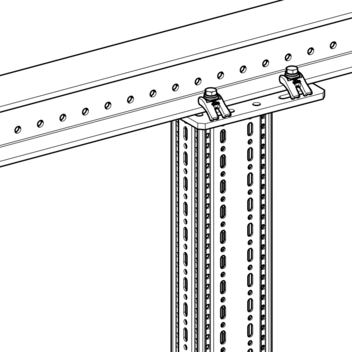

| 1. | Position Beam Clip with the split end on beam section. |
| 2. | Install support plate and HR trimming and tighten accordingly. |
The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the HR trimming a continuous and predictable preload force is guaranteed.
Technical Data

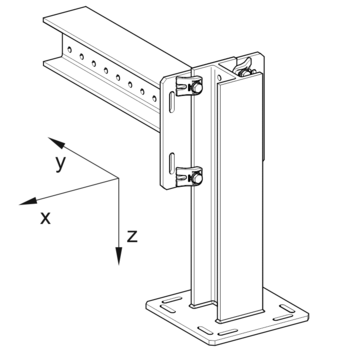

| Type | Size range [mm] | Tightening torque MA [Nm] | Fy perm. per Beam Clip [kN] | Shear force load capacity Fz per set = 4 Beam Clips kN] |
|---|---|---|---|---|
| M12 S | 1 - 30 | 60 / 90° | 26,3 | 12,0 * |
| M16 S | 4 - 40 | 140 / 90° | 32,0 | 13,6 * |
* The specified data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µadhesion = 0,20.
A possibly operating tensile force Fy isn't included.
| Material: | Steel, HCP |
