Fastening to Concrete and Steel

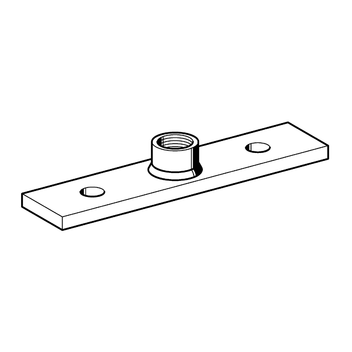

Mounting Plate GPL Stabil HCP
Application

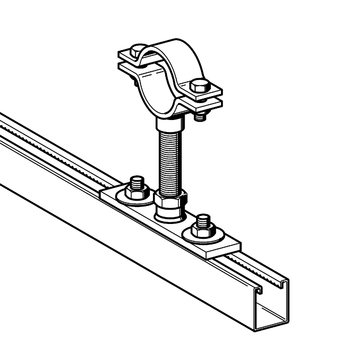

Attachment component to connect Beam Bracket Profil 100 or Channel MS.
Installation

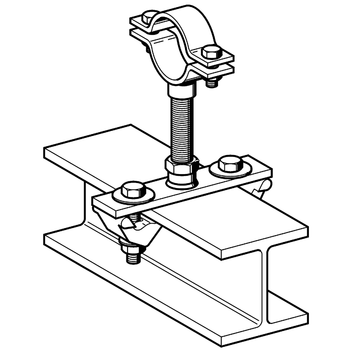

Requires assembly to Beam Bracket Profil with Set MS 5P or two T-Head Bolts TBO HZ 41 M12 at Channel MS.
Technical Data

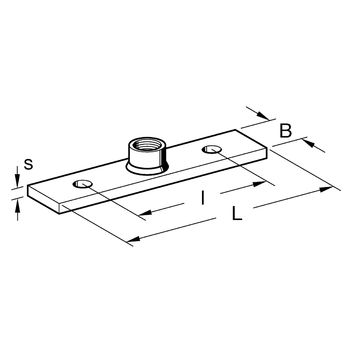

| L x B [mm] | s [mm] | l [mm] | Perforation [mm] | Tension [kN] | Lateral force [kN] | Perm. bending moment [Nm] |
|---|---|---|---|---|---|---|
| 200 x 40 | 8 | 112 | 13 | 18,0 | 13,0 | 29,6 |
| Material | Steel, HCP |
