Pressix CC 41 - Channel System

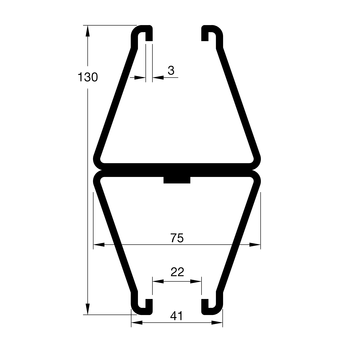

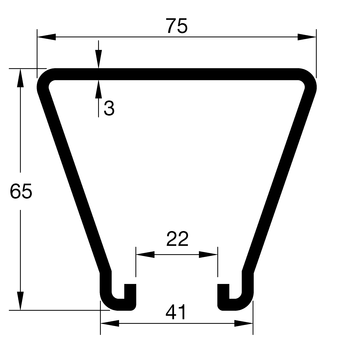

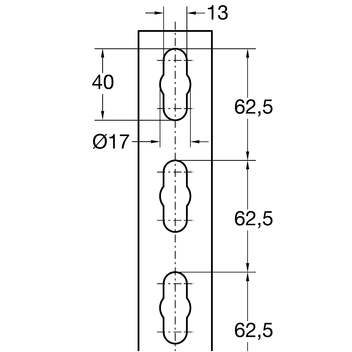

Channel MS 41-75/65/3.0
Permissible load with centrical load application
| L [cm] | 41-75/65/3.0 [N] | 41-75/65/3.0 D [N] |
|---|---|---|
| 20 | 30089 | 86032 |
| 40 | 15037 | 43002 |
| 60 | 10017 | 28653 |
| 80 | 7504 | 21474 |
| 100 | 5994 | 17162 |
| 120 | 4986 | 14285 |
| 140 | 4265 | 12227 |
| 160 | 3722 | 10682 |
| 180 | 3300 | 9478 |
| 200 | 2960 | 8512 |
| 220 | 2682 | 7721 |
| 240 | 2449 | 7060 |
| 260 | 2208 | 6499 |
| 280 | 1886 | 6018 |
| 300 | 1626 | 5599 |
| 320 | 1412 | 5231 |
| 340 | 1233 | 4906 |
| 360 | 1083 | 4615 |
| 380 | 954 | 4354 |
| 400 | 844 | 4119 |
| 420 | 748 | 3905 |
| 440 | 664 | 3682 |
| 460 | 590 | 3336 |
| 480 | 524 | 3031 |
| 500 | 465 | 2760 |
| 520 | 412 | 2519 |
| 540 | 365 | 2302 |
| 560 | 321 | 2108 |
| 580 | 282 | 1932 |
| 600 | 246 | 1772 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
