Stainless Steel Standard Range
Stabil D-2G/-3G ss
Application
For the installation of pipes required for all M&E services in industrial, residential and public buildings.
Scope of delivery

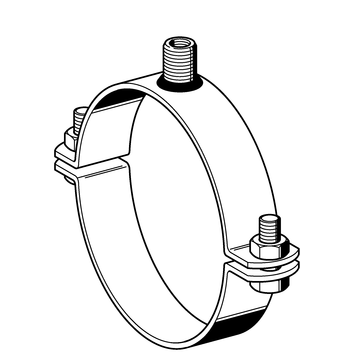

Two-piece pipe clamp with clamping bolts and nuts (supplied loose).
Installation

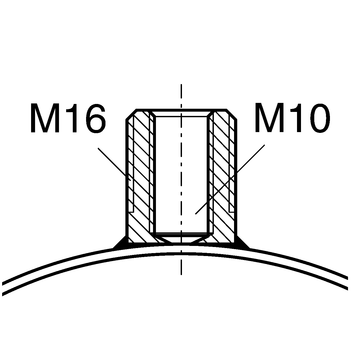

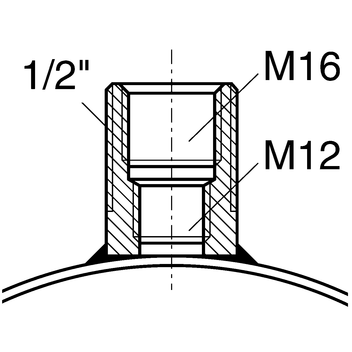

Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1" using an adapter.
Technical Data
|

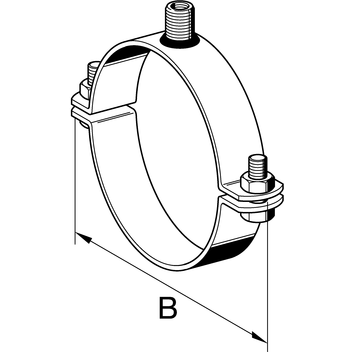

Size range [mm] | Max. adm. load (tension) | Tightening torque [Nm] |
|---|---|---|
| 18 - 71 | 3.7 kN | 3 |
| 74 - 78 | 5.0 kN | 5 |
| 81 - 122 | 6.0 kN | 5 |
| 133 - 207 | 8.0 kN | 10 |
| 210 - 231 | 11.0 kN | 20 |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
| Material: | Stainless steel A4 |
Approvals / Conformity
 | This product has been awared the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655. |
