Application

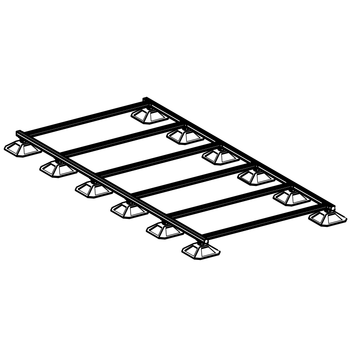

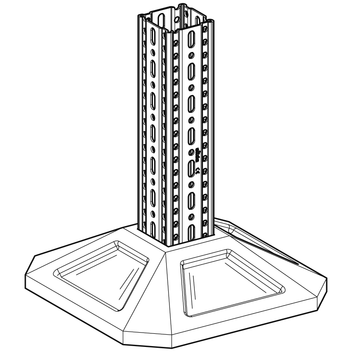

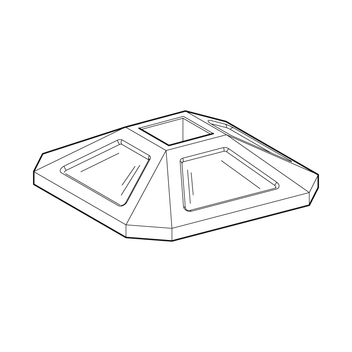

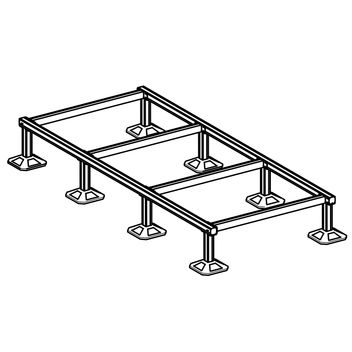

Integrated footplate and permeable rubber compound mat to provide a solution for the support of building services, without the need for penetrative supports. In combination with the Sikla Framo TP F 80 section, any low level frame structure may be built up from the footplates.
Especially suitable for maintaining the thermal and waterproofing integrity of a roof or basement floor as no penetrative fixings are required to secure the footplates for service supports.

The SQF foot is a primary element when supporting such plant as AHU and Chiller Units and is available 0º or with a 2.5º or 5º pitch.

Technical Data

Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. felt) is necessary. Furthermore the statics have to be verified by a qualified engineer.
