Ducting Clamp PLU > DN 560

1602

Ducting Clamp designed for installing spiral-seam ducts according to DIN 24145 for industrial ventilation systems.

Without bolts and nuts. Without connection nut.

Basically, two-sided fixing to threaded rods is recommended.

Material:

Steel, pre-galvanised according to DIN EN 10346

Type	perm. Working load
560 - 900	1.5 kN
1000 - 1250	2.5 kN

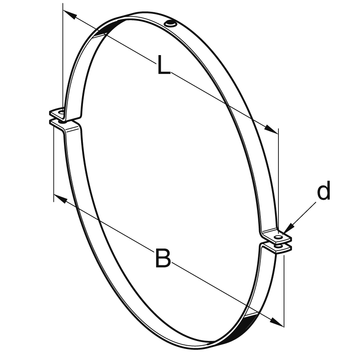

Type / NB	Material [mm]	B [mm]	L [mm]	d [mm]	W [kg]	Quantity [pack]	Part number
560	30 x 2.5	630	604	12.5	1.10	1	121848
600	30 x 2.5	672	646	12.5	1.18	1	149116
630	30 x 2.5	702	676	12.5	1.23	1	121857
710	30 x 2.5	782	756	12.5	1.38	1	121866
800	30 x 2.5	872	846	12.5	1.55	1	121875
900	30 x 2.5	972	946	12.5	1.73	1	121884
1000	40 x 3.0	1076	1050	12.5	3.08	1	121893
1120	40 x 3.0	1196	1170	12.5	3.43	1	121909
1250	40 x 3.0	1325	1299	12.5	3.82	1	121918
