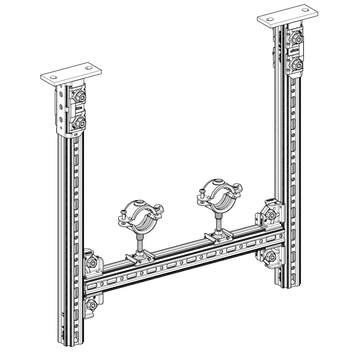

Application

In combination with Profile PRO 46, End Support WBD 46 is particularly suitable for:

  • brackets for wall, floor and ceiling mounting
  • free standing frame constructions

Installation

Connection to the building structure using Bolt Anchors AN BZ plus or heavy-duty anchors. Alternatively, fastening to steel beams using Joining Plate AP 46 80/120 (part no. 802158).

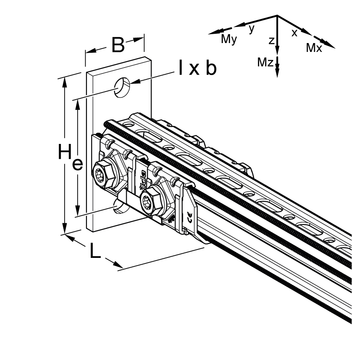

Technical Data

H
[mm]
B
[mm]
L
[mm]
d
[mm]
e
[mm]
l x b
[mm]
No. of Blocks
with screws
laterally
120 50 137 13 90 15 x 13 4 x M10

Type
Vx,perm.
[kN]
± Vy,perm.
[kN]
Vz,perm.
[kN]
- Vz,perm.
[kN]
My,perm.
[kNm]
- My,perm.
[kNm]
± Mz,perm.
[kNm]
WBD 46 1,62 2,44 2,64 3,55 0,41 0,36 0,39

Configuration:
Base plate welded to profile intake
Required tool:
T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
20 Nm
Material:
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
WBD 460.865 803544
