Application

For installation of pipes required for M&E services and in plant construction.

Scope of delivery

With welded M16 nut; clamping bolts and nuts included in loose form. Other welded nuts (e.g. M20) or inch sockets available on request.

Technical Data

Size range
[mm]
Max. adm.
load (tension)
Tightening torque
[Nm]
218 - 277 7.4 kN 10
316 - 407 9 kN 20
411 - 521 15 kN 20

The max. admissible load has been determined by using statistical methods resulting from the breaking loads, observing a max. admissible deformation of
1.5 mm resp. 2 % of the max. tensible pipe dia.

Material:
Steel, electro-galvanised

Approvals / Conformity

FM-Approval for DN 218 - 277

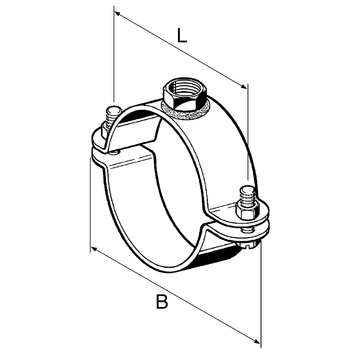

Size range
[mm]
Material
W x th
[mm]
Clamping
bolts
B
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
218 - 22740 x 4.0M12 x 403012751.1810 118772
271 - 27740 x 4.0M12 x 403513251.4210 118198

316 - 32650 x 5M16 x 604403902.601 103844
348 - 35650 x 5M16 x 604714212.821 103862
360 - 36850 x 5M16 x 604834313.041 103871
399 - 40750 x 5M16 x 605204703.101 103905
411 - 41970 x 6M16 x 605324825.121 103914
500 - 50870 x 6M16 x 606195696.061 103941
513 - 52170 x 6M16 x 606315816.341 103950
