Application

Suitable for push-through mounting solutions for quick and safe fixation to concrete ceilings or walls in closed rooms - not suitable for damp locations.

  • Easy drilling (6 mm only ) and simple impact mounting.

Installation

Setting Tool PN is most suited for mounting purposes.

Technical Data

Permissible load in the tensile zone [kN]
for installation solutions in concrete ≥ B25 acc. to approval)
2,4

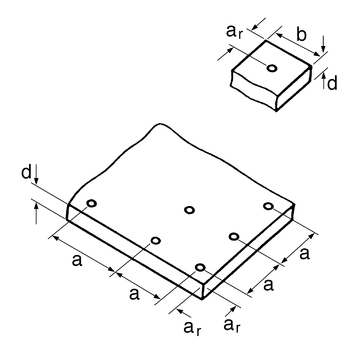

Centre distance a ≥ [mm]
200
Edge distance ar ≥ [mm]
150
Minimum thickness of component d [mm]
80

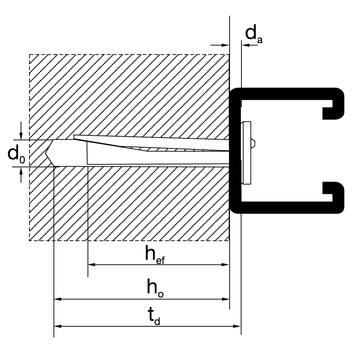

Diameter of drill d0 [mm]
6
Depth of bore hole h0 ≥ [mm]
40
Anchoring depth hef ≥ [mm]
32

The safety factor accord. to ETAG is respected. Values of the mentioned approval are valid.

Material:
Steel, electro-galvanised

Approvals / Conformity

ETA-Approval: ETA-06/0259
Approved in the tensile zone for multiple mounting solutions to concrete exposed to mainly dead static loading.

Permissile load fire resistance:

30 min. N(30)
= 0,8 kN
60 min. N(60)
= 0,7 kN
90 min. N(90)
= 0,6 kN
120 min. N(120)
= 0,4 kN

R30 to R120

Centre distance a ≥ [mm]
200
Edge distance ar ≥ [mm]
150

ETA 06/0259 PDF | 1.6 MB

TypeLength of
dowel
[mm]
Max. eff.
length da
[mm]
Bore depth when
push-through
mount. td [mm]
W
[kg]
Quantity
[pack]
Part
number
PN 27 N6 x 35395400.01100 196298
